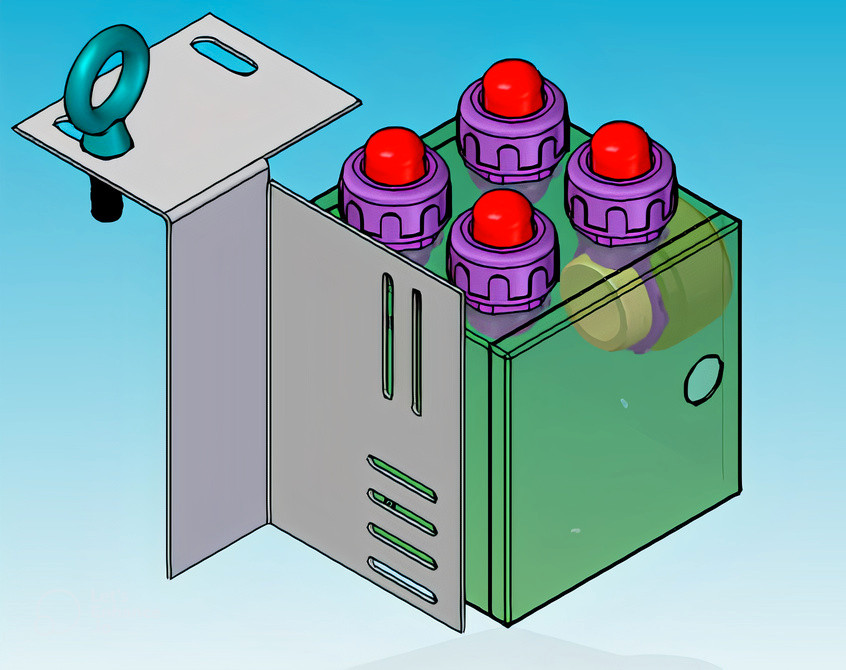

Cabinet-Mounted Fiber Distribution Box

The fiber distribution box combines up to four 1-inch conduits before they enter the cabinet, so four fiber runs share a single hub entry. The shared path is only the short distance between the box and the hub, which protects existing fiber when a later run is pulled.

The box mounts on the top of the cabinet (any of the four sides, or immediately adjacent using Bracket 1) or on the side using Bracket 2 when overhead space is not available.
